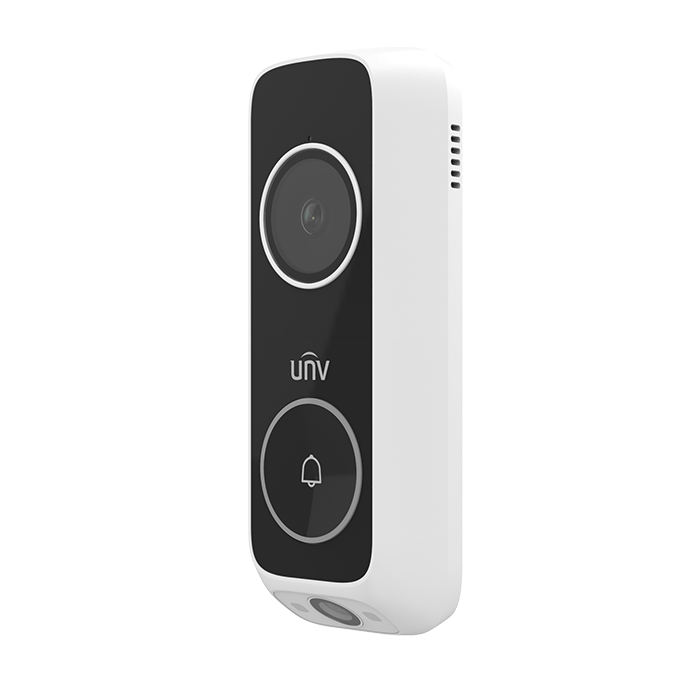

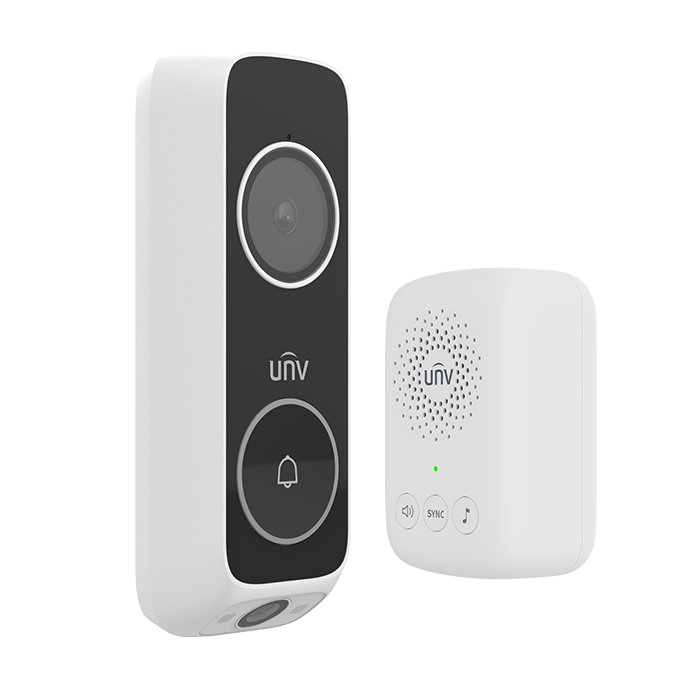

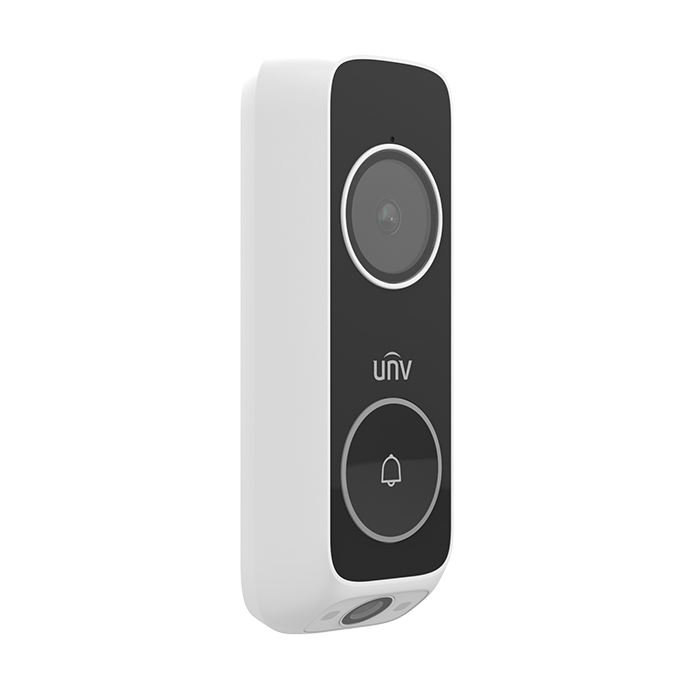

Reimagine your front door security with the UNV Doorbell — a dual-lens video doorbell engineered for complete situational awareness. With two ultra-wide-angle cameras, intelligent detection features, and seamless app connectivity, this doorbell offers unmatched visibility and control. Whether you're monitoring packages, greeting guests, or securing your home, the ED-525B-WB delivers crystal-clear video and real-time alerts — all from the palm of your hand.
Built to perform in any condition, this doorbell is your vigilant, always-on guardian.
Secure smarter — install the UNV Doorbell today.
Features
✓ Dual-Lens Coverage, Full Perspective
3MP main camera for visitor identification and 2MP sub camera for ground-level package monitoring — no blind spots.
✓ Smart Detection, Instant Alerts
Advanced motion, human body, and package detection with real-time notifications via the UNV-Link app and Uniview NVR.
✓ Crystal-Clear Imaging in Any Light
True HDR and WDR technology ensure sharp, balanced video even in challenging lighting conditions.
✓ Always Connected, Always Ready
Dual-band Wi-Fi (2.4GHz & 5GHz), Wi-Fi 6, and Bluetooth support for fast, reliable streaming and easy setup.
✓ Built-In Storage, No Extra Costs
8GB eMMC onboard storage eliminates the need for external memory cards or cloud subscriptions.

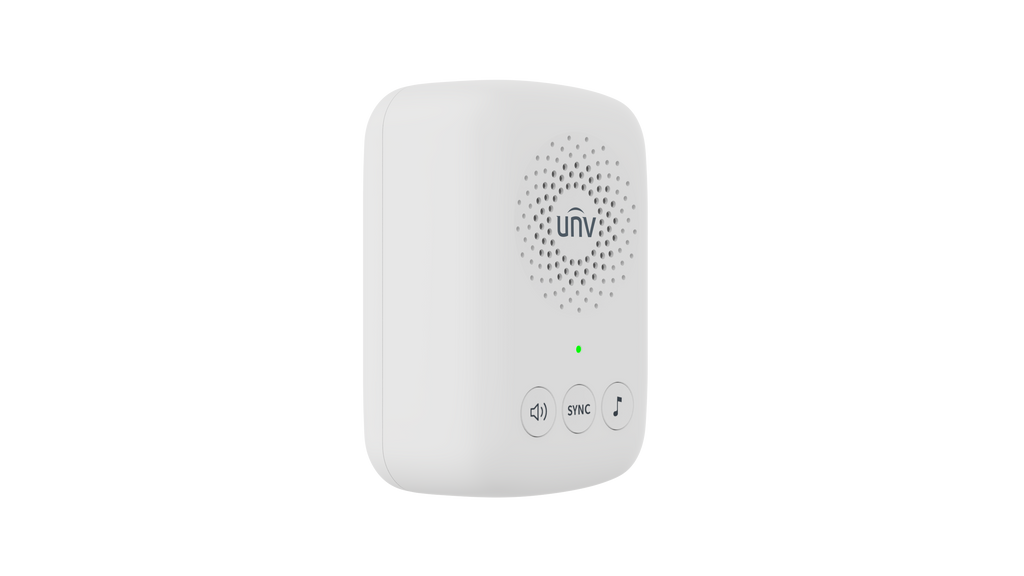

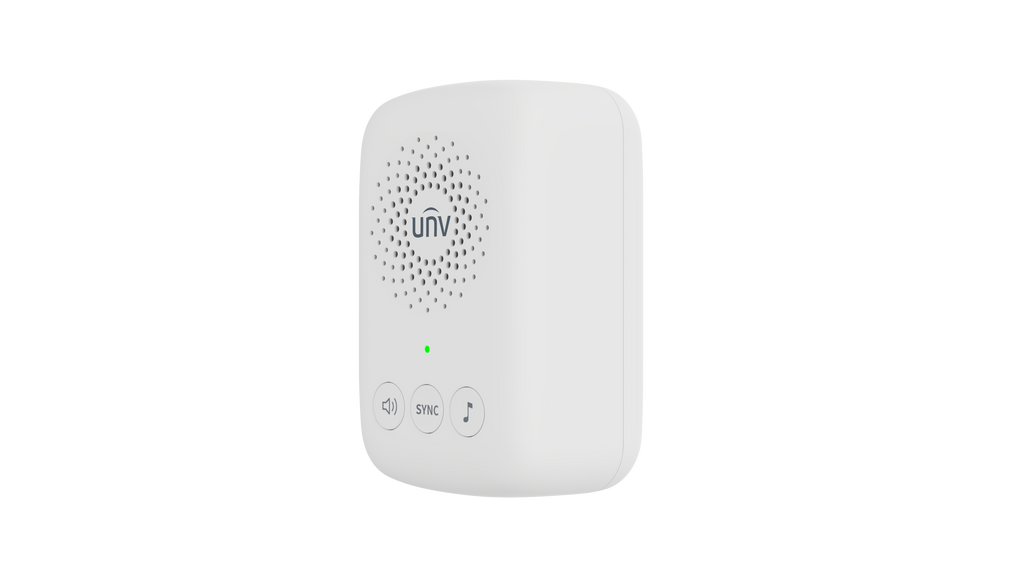

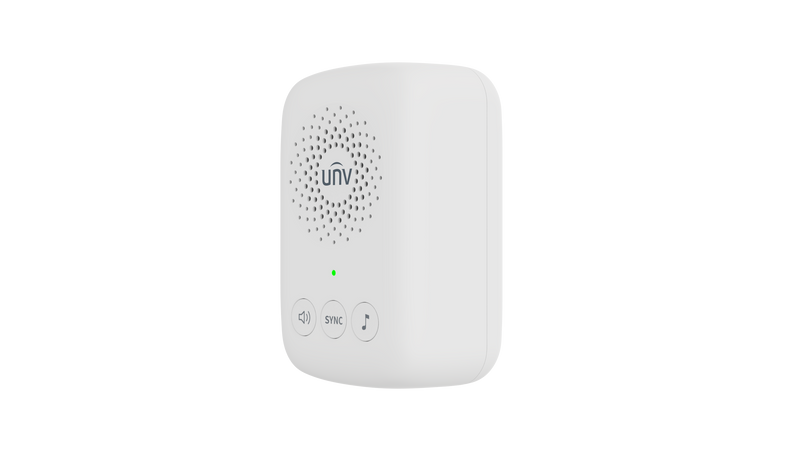

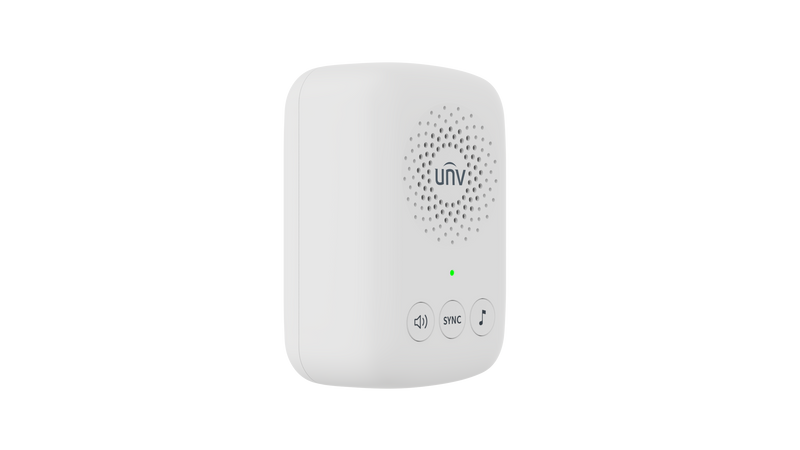

✓ Flexible Chime Options
Supports up to 3 wireless chimes or 1 mechanical chime, with Sub-1GHz wireless connectivity.
✓ Durable & Weatherproof
IP65-rated protection and wide operating temperature range (-30°C to 60°C) for year-round reliability.
Technical Specifications
| Main Camera |
3MP, FOV: H116° / V82.5° / D131°
|
| Sub Camera |
2MP, FOV: H96.8° / V52.6° / D109.9° |
| Illumination |
IR (5m) + White Light (2m), Min. Illumination: 0.02 lux |
| Video Compression |
H.265 / H.264 |
| Audio |
128 Kbps, 8K sampling, G711 / MP3 / PCM |
| Detection |
Motion, Human Body, Package |
| Connectivity |
Dual-band Wi-Fi (802.11 b/g/n/ax), Bluetooth, Sub-1GHz |
| Storage |
8GB eMMC |
| Power |
AC 12–24V, 10W |
| Battery |
240mAh rechargeable lithium (for mechanical chime) |
| Protection Rating |
IP65 |
| Operating Temperature |
-30°C to 60°C |
| Dimensions |
55.8 × 156.5 × 27.9 mm |
