Intelligent Network Camera

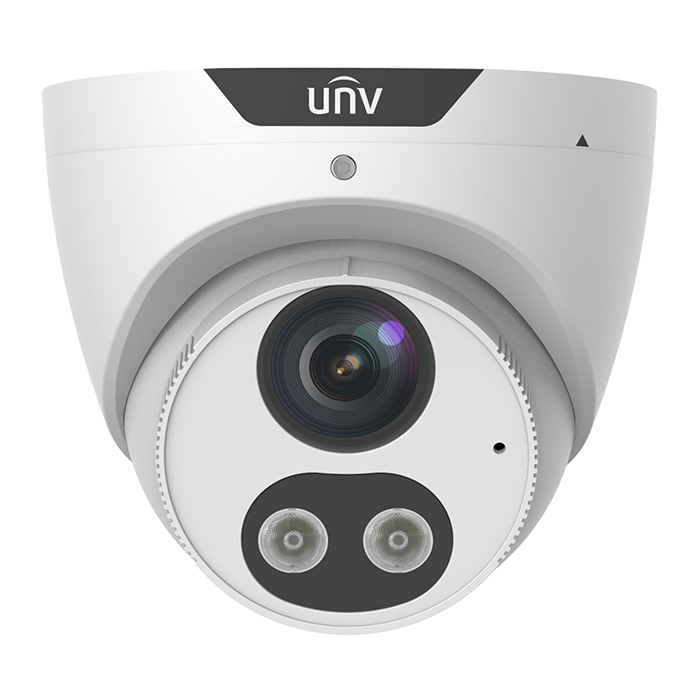

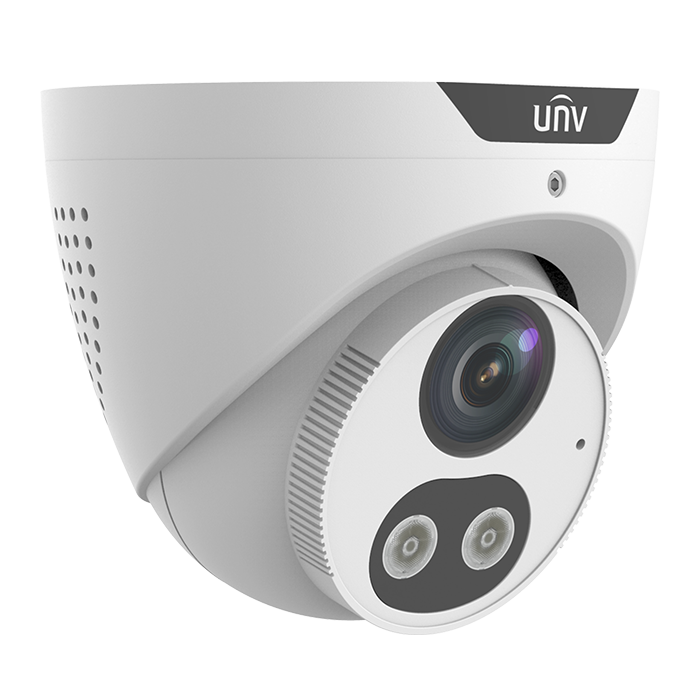

Step into the future of proactive surveillance with the UNV Tri-Guard Turret — a 4MP HD fixed eyeball network camera built for intelligent detection and real-time deterrence. With advanced analytics, sound and light alarm linkage, and Wise ISP technology with exceptional low-light performance, this camera is ideal for securing commercial properties, public spaces, and high-traffic areas.
Smart, responsive, and built to endure — this is next-gen security made simple.
Secure smarter — install the UNV Tri-Guard Turret today.
Features
✓ 4MP Ultra-Clear Imaging
High-performance 1/2.7" CMOS sensor with Smart IR up to 30m and 120dB WDR for crisp video in any lighting.
✓ Smart Intrusion Detection
Filters out false alarms from environmental noise and focuses on real threats — people, vehicles, and non-motor vehicles.
✓ Active Deterrence
Built-in speaker and light alarm activate instantly when threats are detected, deterring intruders in real time.
✓ People Flow & Crowd Monitoring
Ideal for retail and public spaces, with built-in analytics for flow counting and density tracking.
✓ Wide-Angle Coverage
2.8mm fixed lens with a 101.1° horizontal field of view — perfect for broad area monitoring.
✓ Built-In Audio & Local Storage
Two-way audio with integrated mic and speaker, plus Micro SD support up to 512GB.
✓ Weatherproof & PoE-Ready
IP67-rated for outdoor use, with PoE support and a wide operating temperature range (-30°C to 60°C).
Technical Specifications
| Resolution
|
4MP (2688×1520), 30fps
|
| Sensor |
1/2.7" CMOS |
| Lens |
2.8mm, Fixed Iris F1.6 |
| Illumination |
IR & Warm Light, up to 30m |
| WDR |
120dB True WDR |
| Compression |
Ultra 265, H.265, H.264, MJPEG |
| Audio |
G.711U/A, 64Kbps, Two-way audio |
| Detection |
Motion, Tampering, Audio, Smart Intrusion (cross line, area entry/exit) |
| Analytics |
People Flow Counting, Crowd Density Monitoring |
| Storage |
Micro SD up to 512GB, NAS (NFS), ANR |
| Power |
DC 12V±25%, PoE (IEEE 802.3af), Max 7.5W
|
| Operating Temperature |
-30°C to 60°C |
What's in the box?
- 1 x Eyeball camera, turret casing and wall mount
- 1 x Quick Guide
- 1 x Ethernet casing kit
- 4 x screws and wall plugs
- 1 x Drill template
